6 Fiber Multimode Indoor Outdoor Armored Fiber 900um Tight Buffered OM1 Riser

  • 1
  • 2
  • 3

Brand Name : GoreLink

Model Number : G141-306

Certification : ISO,RoHS,REACH

Place of Origin : Made in China

MOQ : 1000m

Payment Terms : T/T,Paypal,Western Union

Packaging Details : Wooden Drum/Spool+Carton

Delivery Time : As per the order quantity

Product Name : Indoor Armored Fiber Cable

Part Number : G141-306

Fiber Count : 6 Fiber

Fiber Type : Multimode OM1

Fire Rating : OFNR

Features : Widely used between wiring closets and equipment rooms,It is flexible, anti-rodent, pressure resistance.,Tested to meet or exceed TIA & GR-409-CORE standards,Anti-rodent ringed steel protection & External reinforced aramid yarn protection,High tensile stre

Contact Now

Indoor Armored Distribution Fiber Cable,6 Fiber, Multimode OM1,OFNR

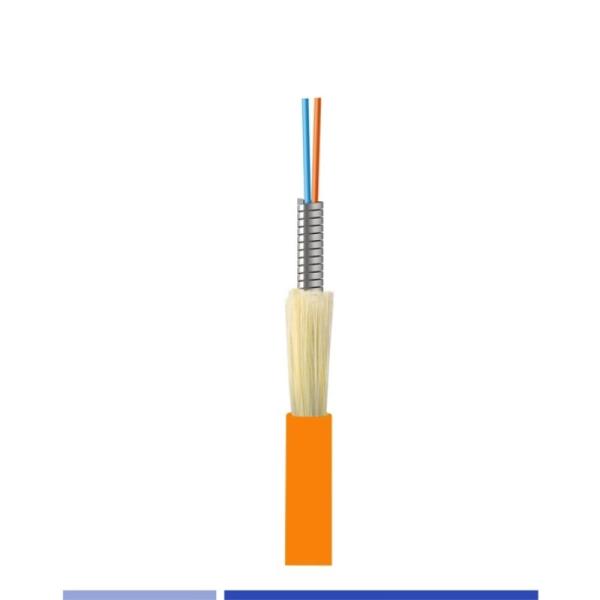

Gorelink Indoor armored fiber optic cable are designed for being used indoor environment, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make it resistant of high tension and pressure. The stainless steel tube prevents optic fiber from damage that improves stability of the system.

It contains 6 tight-buffered fiber bundled under the same jacket with spiral steel tube as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations..

It is widely used for data centers or Central Office applications point to point connections. The strands are color coded for easy identification and installation.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode 62.5/125um OM1

Cable structure 0.9mm Tight-buffered

Fiber Count

6 Core

Strength Member

Spiral Stainless steel tube + Aramid Yarn

Cable Diameter

6.0mm

Cable Color

Orange

Cable Jacket

Riser rated-OFNR

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤2.7dB @850nm

Core diameter(um)

62.5±2.5

Cladding diameter(um)

125±1.0

Wavelength 850nm / 1300nm

6 Fiber Multimode Indoor Outdoor Armored Fiber 900um Tight Buffered OM1 Riser

Ordering Information

PART NO.

DESCRIPTION

G141-306

Indoor Armored Fiber Cable , 6 Fiber , Multimode OM1 , OFNR , Orange
