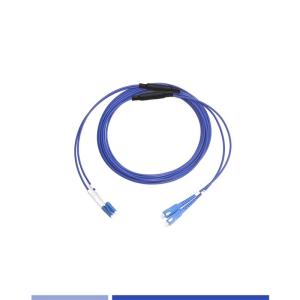

Armored Outdoor Fiber Patch Cord Singlemode Duplex 1m LSZH Jacket Stable Operation

  • 1
  • 2
  • 3

Brand Name : GoreLink

Certification : RoHS,REACH

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T,Paypal,Western Union

Delivery Time : 1-3 Working days

Packaging Details : 1pc/Polybag

Model Number : G228-2332-3

Product : Armored Fiber Optic Patch Cable

Application : FTTA FTTH BBU RRU RRH LTE Base station

Part Number : G228-2332-3

Fiber Type : Singlemode G652D

Connector : SC-SC

Polish : UPC

Fiber count : Duplex

Length : 1m

Jacket : LSZH

Insertion loss : ≤0.3dB

Return loss : ≥50dB

Wavelength : 1310nm,1550nm

Quality control : 100% test before shipping

Contact Now

SC-SC Armored Fiber Optic Patch Cable, Singlemode Duplex,3m,LSZH jacket

Gorelink Amored fiber optic patch Cords are designed for being used in harsh environment, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make the armored fiber patch cord resistant of high tension and pressure and it is not easy to break when bent or dragged. The stainless steel tube prevents optic fiber from damage that improves stability of the system.

It is crush and rodent resistant without being bulky, heavy, or messy.Armored fiber optic patch cables are made with similar outer diameter to standard patch cables, making them both space saving and strong.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode 9/125um OS2

ConnectorSC-SC

Cable structure

Duplex

Strength Member

Sprial steel with Aramid Yarn

Cable Diameter

3.0mm

Cable Color

Blue

Polishing Way

UPC

Connector Color

Blue (SC,LC)

Black (ST,FC)

Cable Jacket

LSZH

Cable length

As per the order request

OPTICAL PERFORMANCE

Fiber Type

G.652D

G.657A

APC

Insertion Loss(IL)

≤0.3 dB

≤0.3 dB

≤0.25 dB

Return Loss(RL)

≥50dB(UPC)

≥50dB(UPC)

≥60dB(APC)


Armored Outdoor Fiber Patch Cord Singlemode Duplex 1m LSZH Jacket Stable Operation


Ordering Information

PART NO.

DESCRIPTION

G228-2332-1

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 1m

G228-2332-2

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 2m

G228-2332-3

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 3m

G228-2332-5

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 5m

G228-2332-10

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 10m

G228-2332-15

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 15m

G228-2332-20

Armored Fiber optic patch cord, SC/UPC-SC/UPC SM, Duplex, 3.0mm LSZH jacket 20m

* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .
